High Torque DC Geared Motor (37GB555) 12V – 267RPM

750.00 EGP

Buy Now

Availability: In Stock

Description

JGB37-555 37mm small high torque dc motor gear motor for robot 12V 555 PM DC Reducton industrial gear motor

Datasheet:

	Voltage		No load		On Load				Stall		Speed reducer		Weight
JGB37– 555	Using	Rated	Speed	Current	Speed	Current	Torque	Power	Torque	Curren	Reductor	length	unit
JGB37– 555	Range	Voltage	rpm	ma	rpm	A	kg. cm	W	kg. cm	A	Ratio	mm	g
24V	6-30V	24V	1280	300	960	2.4	1.75	35	5.6	3	6.25	19	302
	6-30V	24V	800	300	600	2.4	2.8	35	9	3	10	19	302
	6-30V	24V	425	300	318	2.4	5.3	35	17	3	18.8	22	309
	6-30V	24V	266	260	200	2.3	8.4	35	27	3	30	22	309
	6-30V	24V	143	260	107	2.3	15.7	35	50.2	3	56	24	314
	6-30V	24V	88	260	66	2.3	25	35	Forbidden	3	90	24	314
	6-30V	24V	61	260	46	2.3	37	35	Forbidden	3	131	26.5	320
	6-30V	24V	48	200	36	2.2	47	35	Forbidden	3	168	26.5	320
	6-30V	24V	30	200	23	2.2	60	35	Forbidden	3	270	26.5	320
	6-30V	24V	16	200	12	2.2	60	35	Forbidden	3	506	29	324
	6-30V	24V	10	200	8	2.2	60	35	Forbidden	3	810	29	324
12V	6-30V	12V	1280	300	960	2.4	1.75	35	5.6	3	6.25	19	302
	6-30V	12V	800	300	600	2.4	2.8	35	9	3	10	19	302
	6-30V	12V	425	300	318	2.4	5.3	35	17	3	18.8	22	309
	6-30V	12V	266	260	200	2.3	8.4	35	27	3	30	22	309
	6-30V	12V	143	260	107	2.3	15.7	35	50.2	3	56	24	314
	6-30V	12V	88	260	66	2.3	25	35	Forbidden	3	90	24	314
	6-30V	12V	61	260	46	2.3	37	35	Forbidden	3	131	26.5	320
	6-30V	12V	48	200	36	2.2	47	35	Forbidden	3	168	26.5	320
	6-30V	12V	30	200	23	2.2	60	35	Forbidden	3	270	26.5	320
	6-30V	12V	16	200	12	2.2	60.0	35	Forbidden	3	506	29	324
	6-30V	12V	10	200	8	2.2	60.0	35	Forbidden	3	810.0	29	324

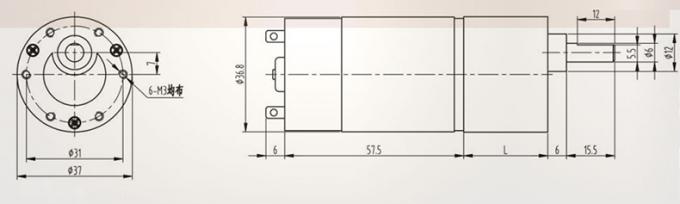

Dimension:

JGB37 555 12V Electric DC Gear Motor High Torque 37MM For Robot 0

Model: JGB37-555
