Specifications

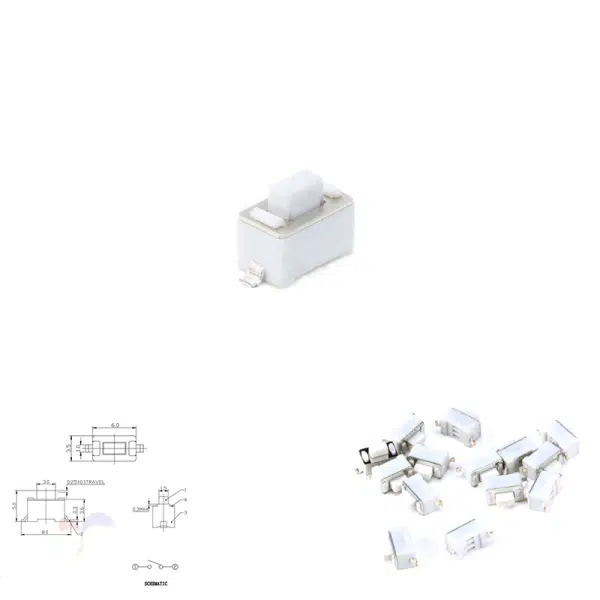

- Product Name : Tact Switch
- Contact Type : Momentary Contact
- Mounting Type : SMD;
- Dimension : 3 x 6 x 5mm (L*W*H)
- Material : Plastic, Metal, Electric Parts;
- Color : Black, White
- Net Weight : 1g;
- Current rating: 12V 50mA
Electrical Specifications
- Electrical: 50,000 cycles for 160gf
- Rating: 50mA/12VDC
- Contact Resistance: 100mΩ max.
- Insulation Resistance: 100MΩ min., at 500VDC
- Dielectric Strength: 250 VAC / 1 minute
