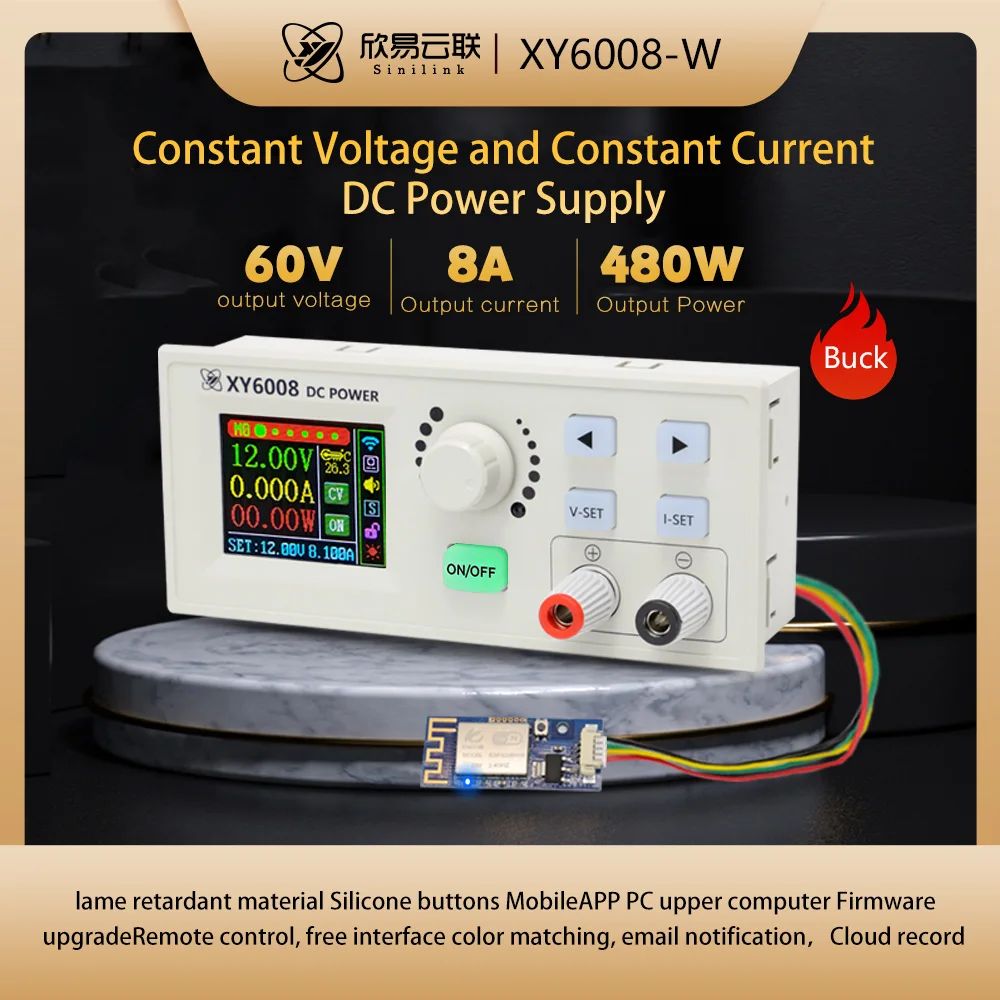

XY6008 60V 8A 480W Step-down Module Direct Current Regulated Power Supply
Features:
- Digital control direct current voltage stabilization power supply is compact, with a full digital keyboard, minimal operation, and convenient and fast

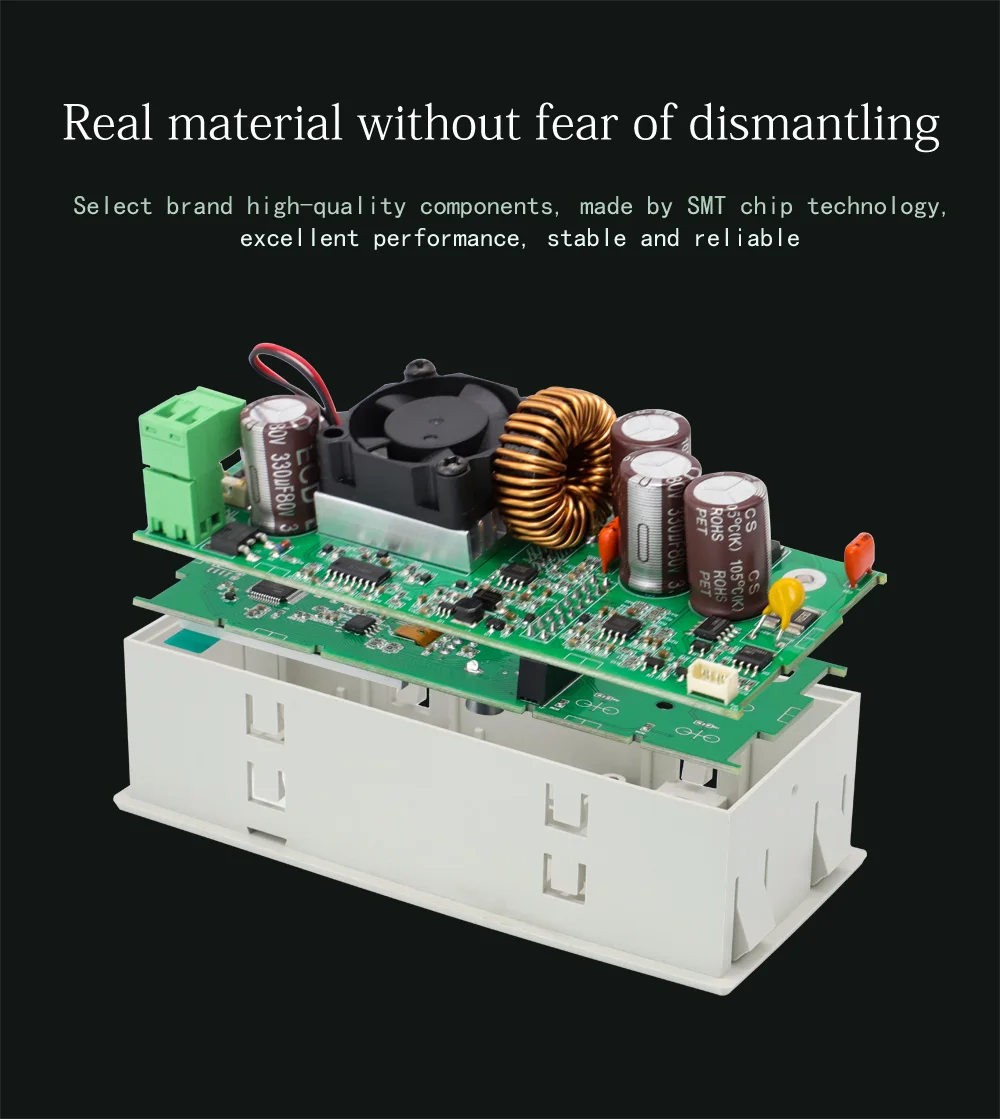

- Fine workmanship, adopts quality components, uses SMT process production and can provide stable and reliable working performance
- With a full-view 1.8-inch color LCD display, the large screen supports four-way rotation, which makes it can be used horizontally or vertically, and can be controlled by a remote controller.
- Screen brightness settings, 6 levels(0-5 level) of brightness adjustment design, you can adjust the brightness based on current lighting conditions

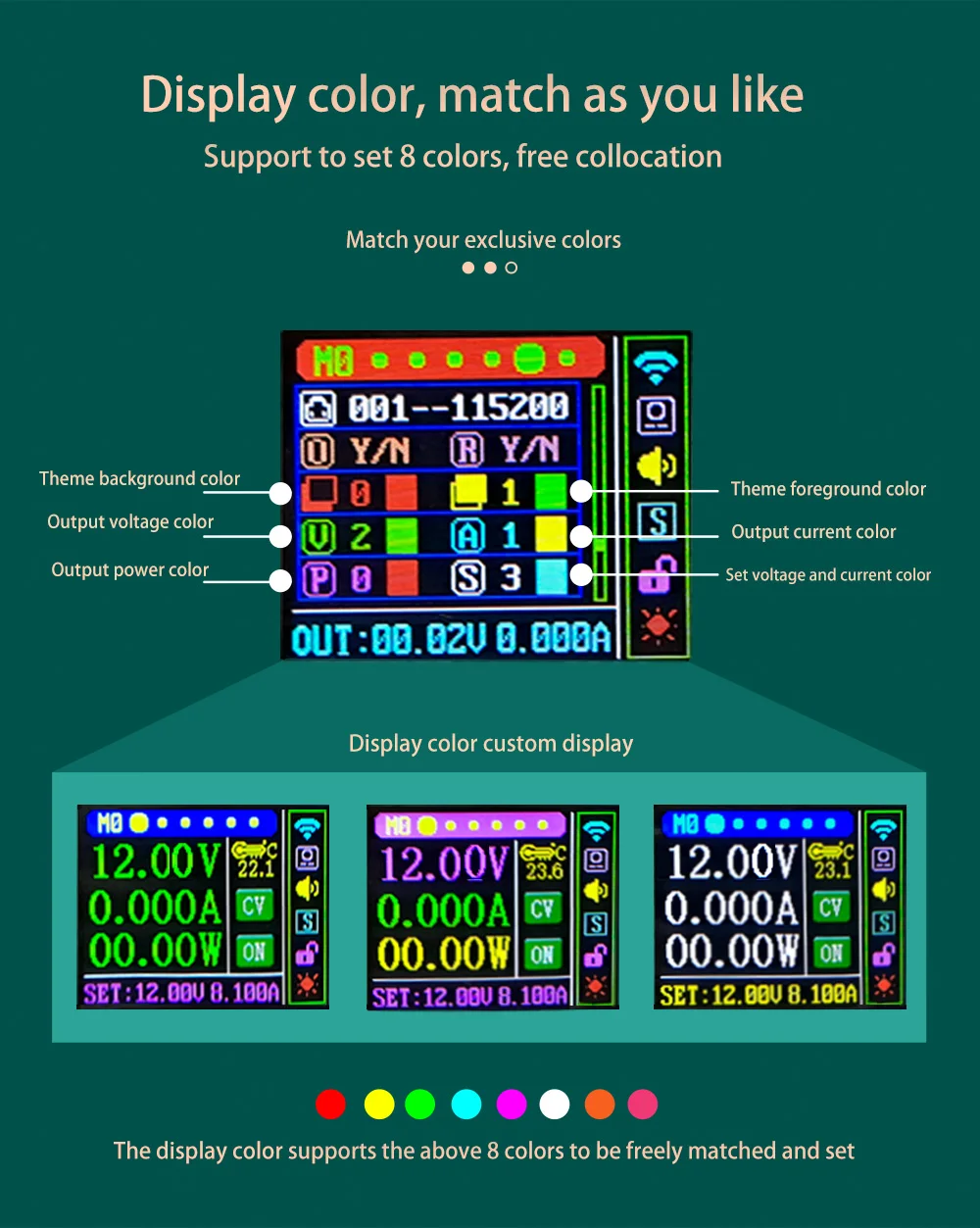

- Display color adjustable design, the theme background color, output voltage color, output power color, theme foreground color, output current color, voltage, and current color can be set for free, support setting 8 colors
XY6008-WiFi Only:

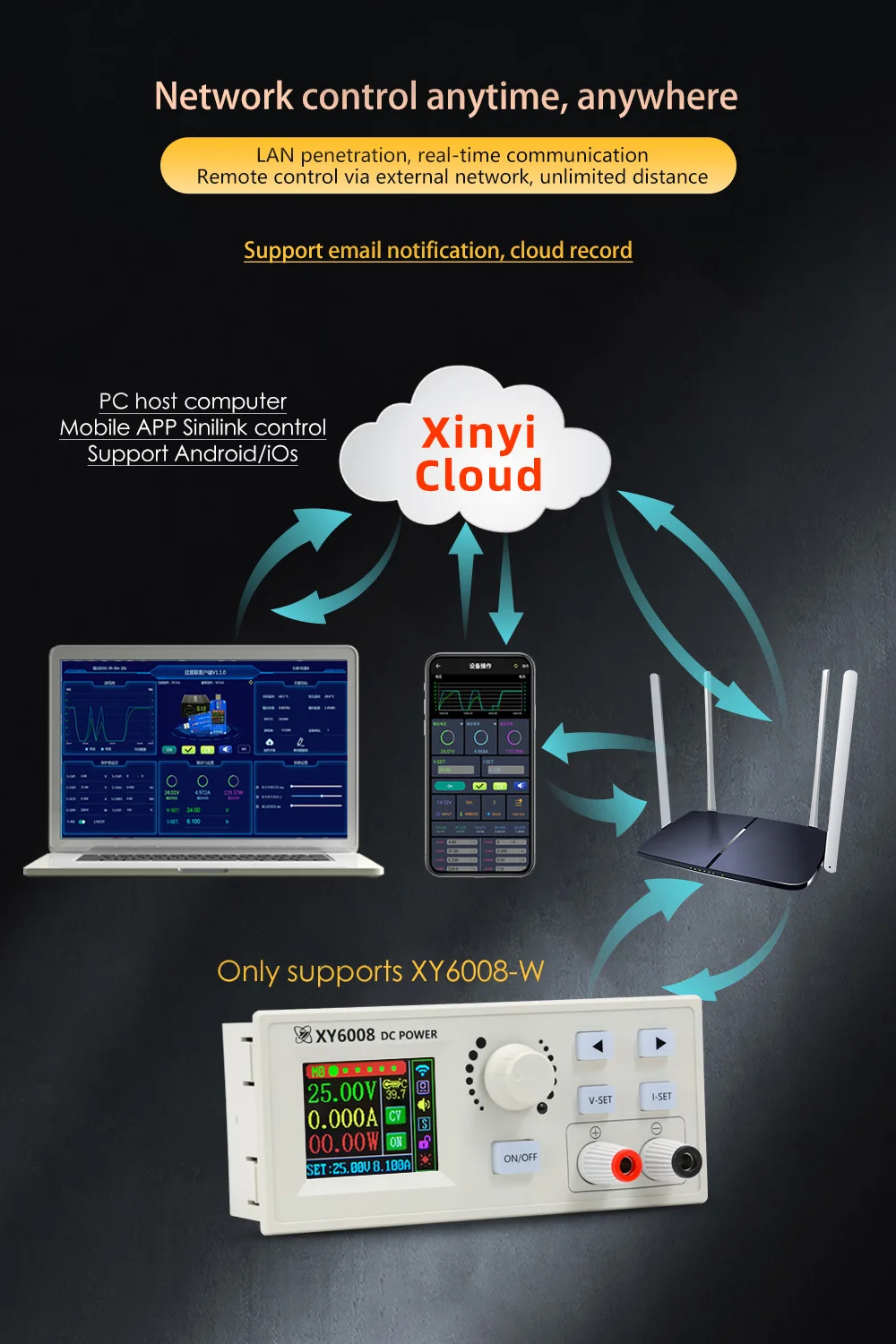

- Support network control, LAN penetration, real-time communication; outer net remote control, no distance limitation
- Support WeChat notifications, and cloud records
- Support computer upload, cellphone APP control, and support both Android and iOS systems
- Firmware upgrade, WIFI remote upgrade, eliminating the tedious wiring, can be easily handled

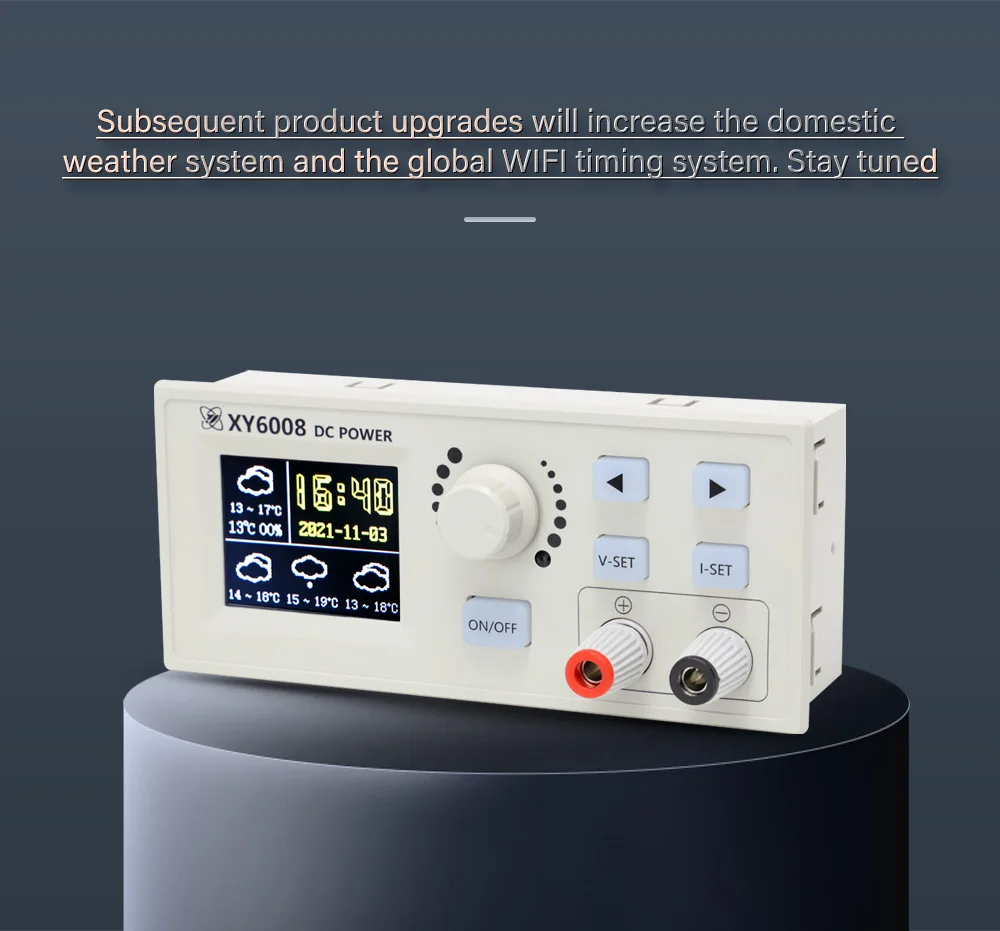

- Support domestic weather system and global WiFi timing system
Specifications:
- Name: Step-down Module
- Material: plastics
- Model: XY6008W
- Remote controller battery: 1 * CR2025 battery (included)
- Screen brightness setting: 0-5 a total of 6 level
- Display screen: 1.8-inch color LCD display
- Input voltages range: from 6-70. 00V
- Output voltages ranges: 0-60.00V
- Output current ranges: 0-8.000A
- Output power ranges: 0-480.0W
- Input voltages measurement resolution: 0.01V
- Output voltages setting measurement resolution: 0.01V
- Current setting measurement resolution: 0.001A
- Input voltages measurement accuracy: ±(1%+5 words)
- Output voltages setting and measurement accuracy: (0.4%+1 word)
- Output current setting and measurement accuracy: ±(0.5%+3 words)
- Typical output ripples: 100mv VPP
- Product working temperature ranges: -10℃–40℃
- Capacity measurement ranges: 0-99999Ah
- Energy measurement ranges: 0-99999Wh
- Statistical error of capacity and energy: ±2%
- Running for time measurement ranges: 0-1000h
- Maximum output voltages: (input voltages÷1.1)-2
- Cooling fan turned on: current>2A power>50W temperature>50℃
- The cooling fan is turned on and then turned off: current <1.5A power <45W temperature <45℃
- Over temperature protection: default 110℃

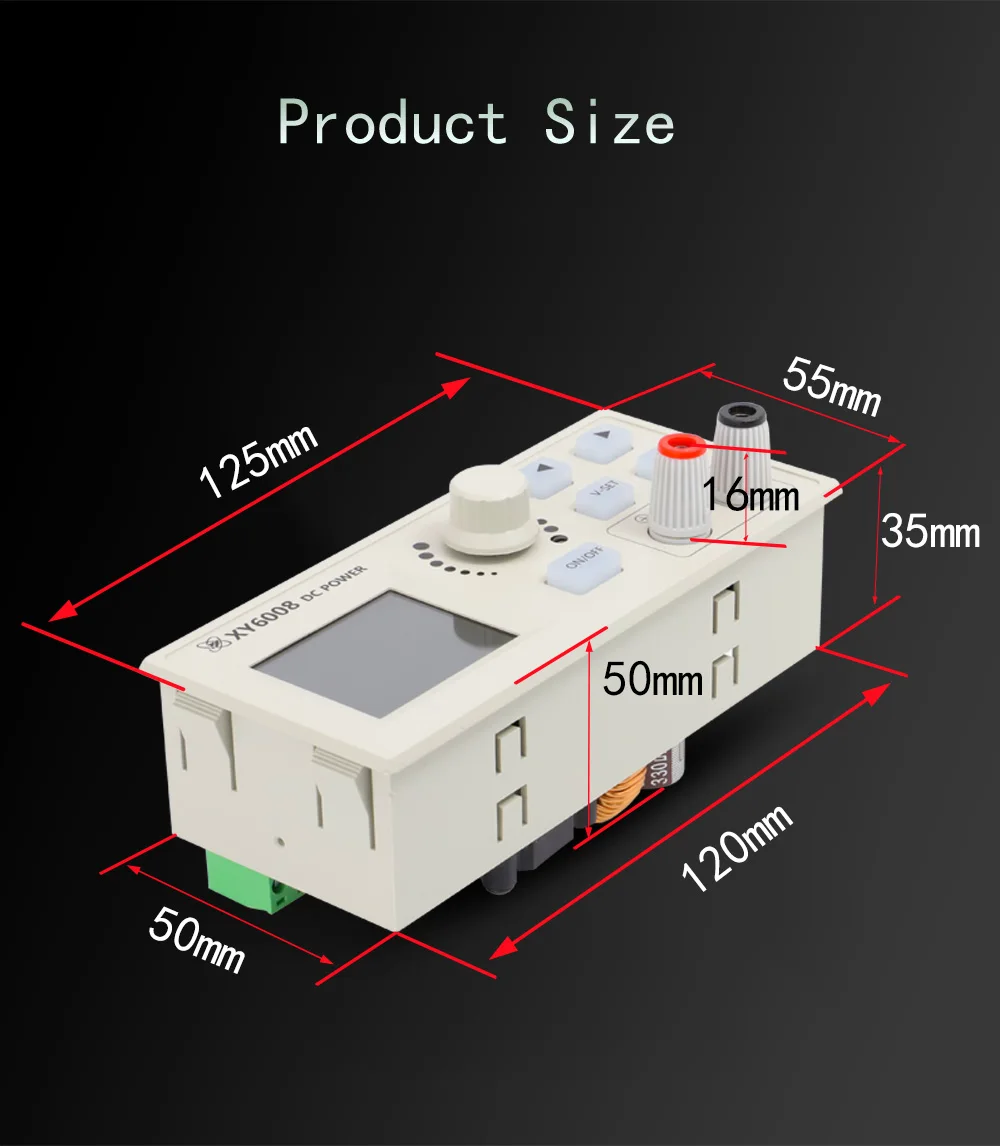

- Item size: 125 * 55 * 66mm
- Package size: 150 * 90 * 100mm
- Package weight: 258g

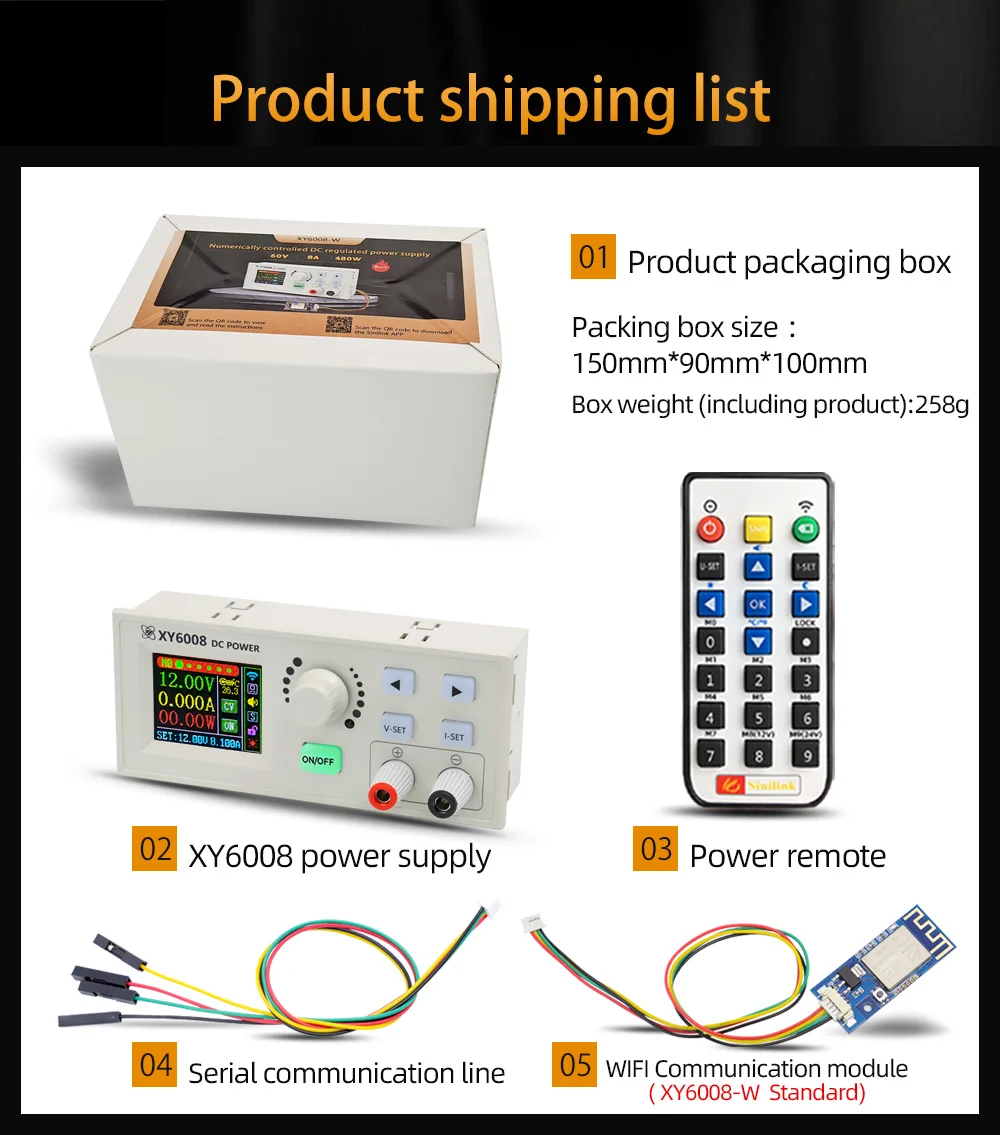

Package includes:
1 x Step-down Module
1 x Remote Controller

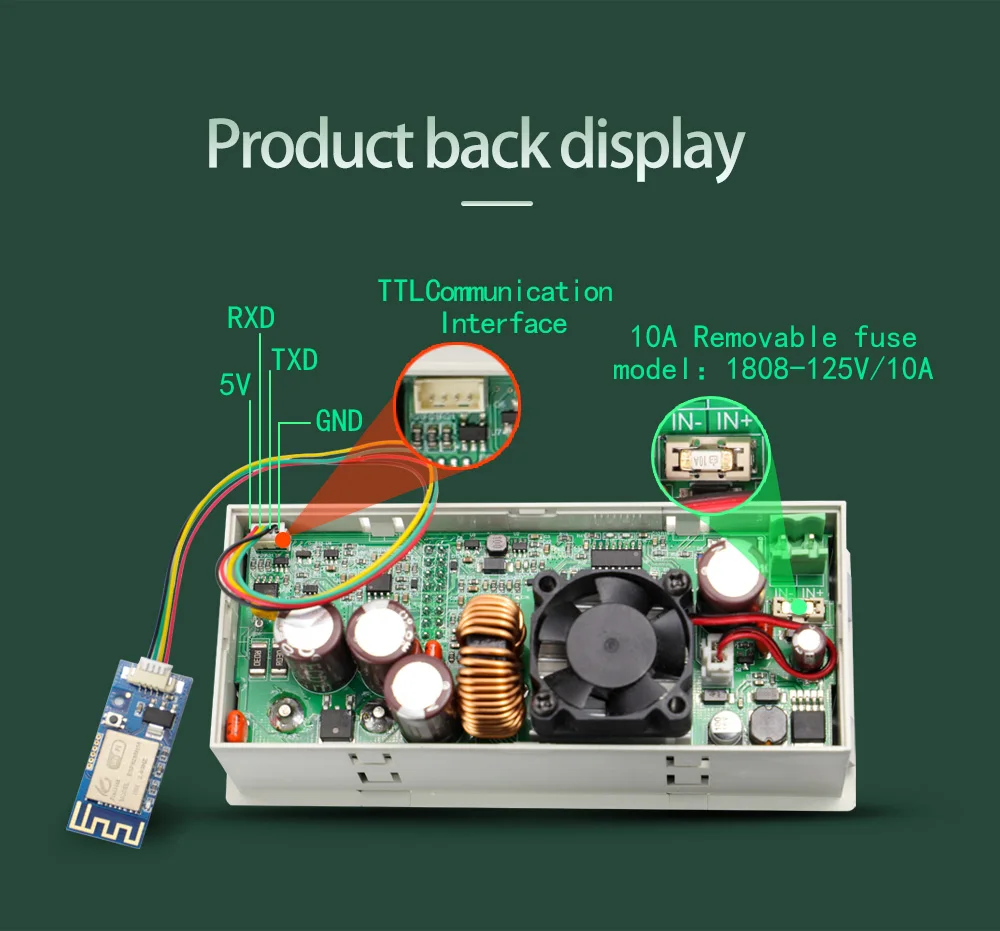

1 x Serial Port Communication Cable
1 x WifFi Communication Module
Documents:
XY6008 User Manual
Download sinilink APK
