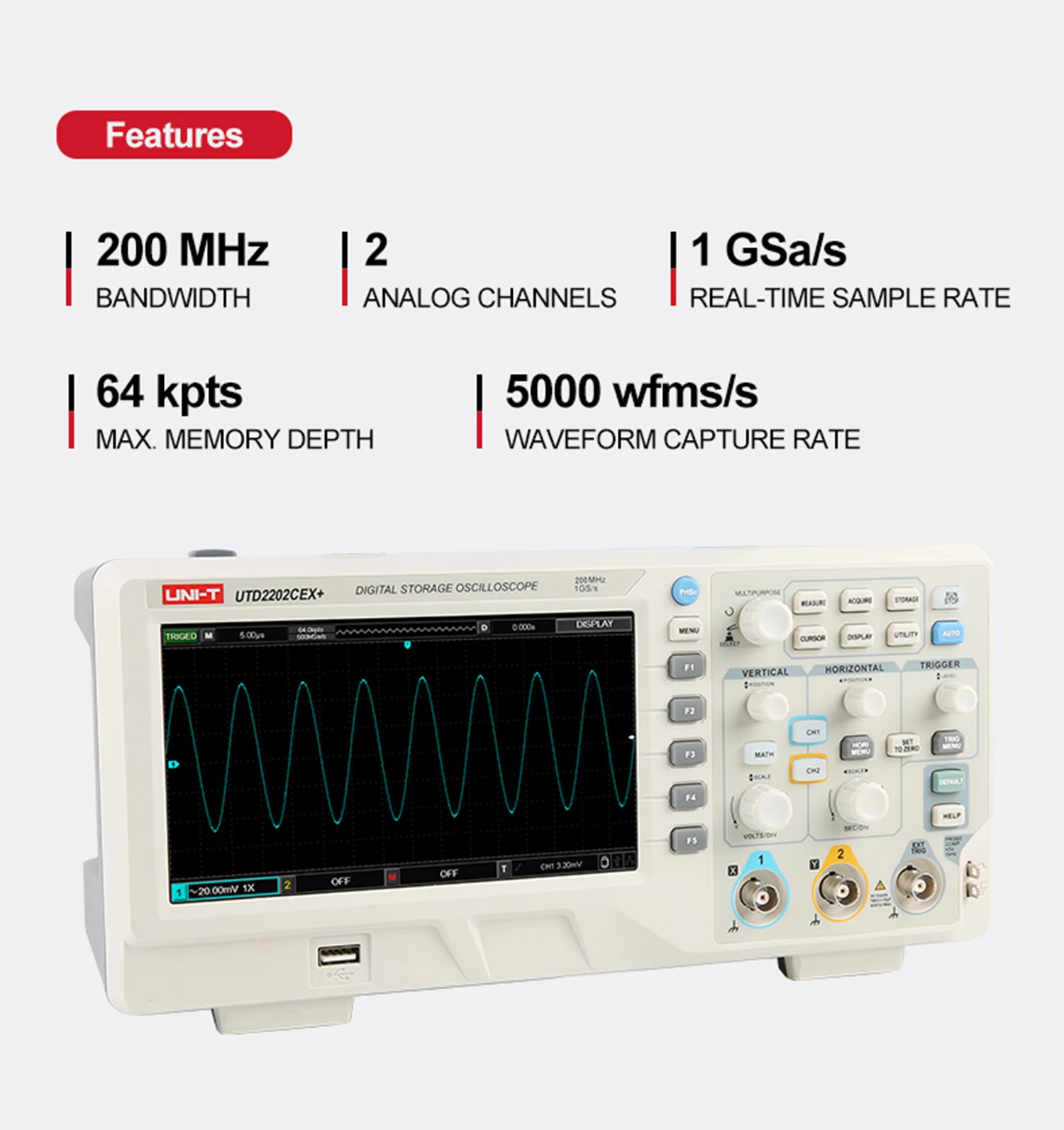

Features:
- 200MHz bandwidth
- 2channels, low noise floor, wide vertical range: 1mV/div~20V/div
- Memory depth: 64kpts
- System software upgrade via USB drive
- 7 inch TFT LCD
- Supports plug-and-play USB storage device; communication with and remote control of the computer through the USB device
Technical Specifications
| Key Specifications | UTD2202CEX+ |
| Bandwidth | 200MHz |
| Channels | 2 |
| Sampling rate | 1GSa/s |
| Memory depth | 64kpts |
| Waveform capture rate | 5, 000wfms/s |
| Rise time | <1.8ns |
| Vertical scale (V/div) | 1mV/div~20V/div |
| Vertical resolution | 8bit |
| Time base scale (s/div) | 2ns/div~50s/div |
| Deviation from scope | ±8div(away from screen center) |
| Input impedance | 1MΩ±2% ,18±3pF |
| Input coupling | DC, AC, GND |
| Timing accuracy | ≤± (50+2 × service life )ppm
、 、 |
| Time base mode | Y-T X-Y Roll |
| Storage methods | Setup, wave, bitmap |
| Trigger types | Edge, pulse, alternate, slope, video
＋ － |
| Mathematical operations | , , ×, ÷, FFT |
| Auto measurements | Max, Min, High, Low, Ampl, Pk-Pk, Middle, Mean, CycMean, RMS, C ycRMS, Period, Freq, Rise, Fall, RiseDelay,
FallDelay, +Width, -Width, FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, +Duty, -Duty, Area, CycArea, OverSht, PreSht, Phase, 34 parameters in total |
| Displayed measurements | Display 5 measurements at the same time |
| Frequency counter | 6 bits |
| Interface | USB Host, USB Device, Pass/Fail |
| Power | 100-240VAC, 45-440Hz |
| Display | 7-inch TFT LCD, 800×480 |
| Product Color | White and grey |
| Product net weight | 2.5kg |
| Product size (W×H×D) | 306mm×138mm×124mm |
